HPLC Pump

VICI Syringe-Free Liquid Handling Pump


 產品規格
液相處理幫浦

Cheminert® M系列液相處理幫浦是一種無注射幫浦，能夠提供雙向流動超過六個數量級。M系列是一種容積幫浦，因此具有自吸性和耐受性可能進入流體管路的氣體。沒有單獨的填充週期，容量為無限。
提供兩款基本型號 — M6（5 nL/min 到 5 mL/min）和 M50（1 µL/min 到 25 mL/min）。高壓版本可達 1500 psi。具有輕量鋁合金機身，改善散熱。
內建USB和RS-422/485通信協議，軟體可控制流速、流向和計量體積。歡迎洽詢討論。



Pumps with aluminum body Product No.
Model M6

• 5 nL - 5 mL/min
• < 100 psi

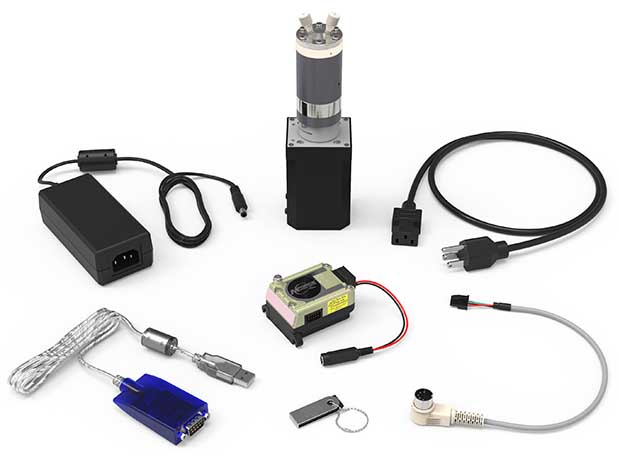

 Pump, stepper motor,
and controller		 CP2A-4841-F1
Pump and stepper motor CP2A-4841-SF1
Pump CP2A-4841-D
Model M6HP

•5 nl - 5 ml/min
• < 1500 psi

 Pump, stepper motor,
and controller		 CP2A-4141-F1HP
Pump and stepper motor CP2A-4141-SF1HP
Pump CP2A-4141-DHP
Model M50

• 1 µl - 25 ml/min
• < 100 psi

 Pump, stepper motor,
and controller		 CP3A-8182-F2
Pump and stepper motor CP3A-8182-SF2
Pump CP3A-8182-D
Model M50HP

• 1 µL - 25 mL/min
• < 500 psi

 Pump, stepper motor,
and controller		 CP3A-8112-F2HP
Pump and stepper motor CP3A-8112-SF2HP
Pump CP3A-8112-DHP
Pumps with stainless body Product No.
Model M6

•5 nL - 5 mL/min
• < 100 psi

 Pump, stepper motor,
and controller		 CP2-4841-F1
Pump and stepper motor CP2-4841-SF1
Pump CP2-4841-D
Model M6HP

•5 nL - 5 mL/min
• < 1500 psi

 Pump, stepper motor,
and controller		 CP2-4141-F1HP
Pump and stepper motor CP2-4141-SF1HP
Pump CP2-4141-DHP
Model M50

• 1 µL - 25 mL/min
• < 100 psi

 Pump, stepper motor,
and controller		 CP3-8182-F2
Pump and stepper motor CP3-8182-SF2
Pump CP3-8182-D
Model M50HP

• 1 µL - 25 mL/min
• < 500 psi

 Pump, stepper motor,
and controller		 CP3-8112-F2HP
Pump and stepper motor CP3-8112-SF2HP
Pump CP3-8112-DHP
Replacement components Product No.
Replacement pump motor Single stage (standard on M6 and M6HP) CP-DSM
Dual stage (standard on M50 and M50HP) CP-DSM2
Controller M-Force CP-CMF


-----------------------------------------------------------------------------------------------------------------

**尚有其它系列、規格產品

   如需產品報價或詳細資料，歡迎來信或至官方LINE(ID:@analab)洽詢~~
