Sepax SRT-C SEC Columns (C line column)
- 適用於分離和分析疏水蛋白質,以及修飾為聚合物支鏈(如多肽或PEG)的單克隆抗體的理想選擇。
- 孔隙尺寸選擇:100、150、300、500、1,000 和 2,000 A
- 高分離效率和分辨能力
- 優越的再現性
- 高蛋白質回收率
- 排除特異性相互作用
- 可提供客製化服務

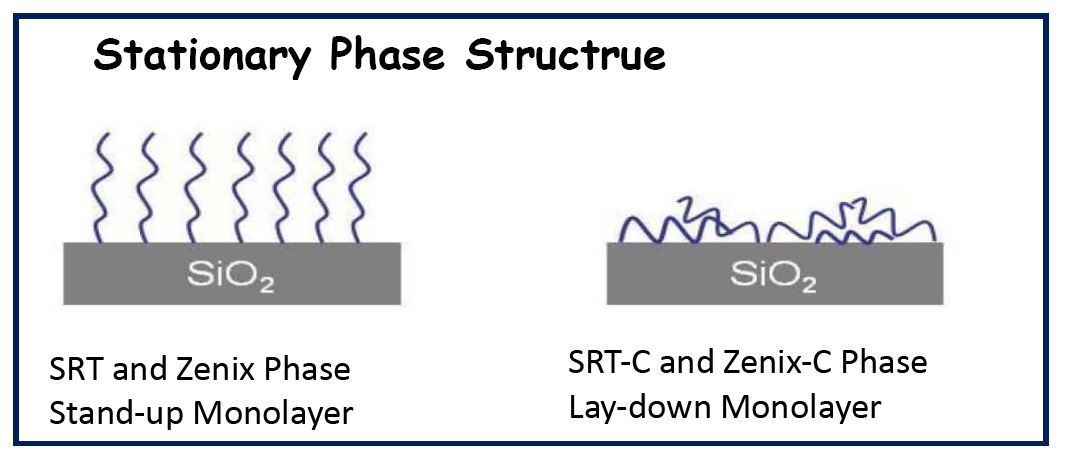

獨特 Lay-down 技術
特有的lay-down 技術讓SRT-C管柱更適合用來分析輸水性樣品
EX: ADC (antibody drug conjugate) , 胰島素(insulin) , PEG...
管柱規格表
Phase |
SRT-C |
SRT-C |
SRT-C |
|
SEC-100 |
SEC-150 |
SEC-300 |
Material |
Neutral, hydrophilic film bonded silica |
|
Particle size |
5 µm |
|
|
Pore size |
~ 100 Å |
~ 150 Å |
~ 300 Å |
Protein MW range (native) |
100 - 100,000 |
500 - 150,000 |
5,000 - 1,250,000 |
pH stability |
2 - 8.5 (pH 8.5-9.5 can be tolerated temporarily.) |
Backpressure max (psi) |
~700 |
~700 |
~700 |
Maximum backpressure (psi) |
~4500 |
~4500 |
~3500 |
Salt concentration range |
20 mM - 2.0 M |
|
|
Maximum temperature (°C) |
~ 80 |
|
|
Mobile phase compatibility |
Aqueous and organic |
|
Phase |
SRT-C |
SRT-C |
SRT-C |
|
SEC-500 |
SEC-1000 |
SEC-2000 |
Material |
Neutral, hydrophilic film bonded silica |
|
Particle size |
5 µm |
|
|
Pore size |
~ 500 Å |
~ 1000 Å |
~ 2000 Å |
Protein MW range (native) |
15,000 - 5,000,000 |
50,000 - 7,500,000 |
>10,000,000 |
pH stability |
2 - 8.5 (pH 8.5-9.5 can be tolerated temporarily.) |
Backpressure max (psi) |
~700 |
~700 |
~700 |
Maximum backpressure (psi) |
~3500 |
~3500 |
~3000 |
Salt concentration range |
20 mM - 2.0 M |
|
|
Maximum temperature (°C) |
~ 80 |
|
|
Mobile phase compatibility |
Aqueous and organic |
|
